HEATING SYSTEM

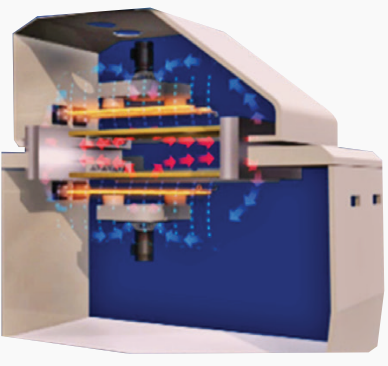

HIGH EFFICIENCY FRONT &REAR FLOW CONVECTION
Minimize zone-to-zone heat migration which is usually seen on conventional left &right flow
Minimize the heat loss in ever heat transfer through optimizing air management system
UNIQUE AND EFFECTIVE JET NOZZLE DESIGN
Embedded jet nozzles inside 8mm thick heating panels with black nano coating to improve 2-5%heating uniformity
Heating panels store energy for quick recovery during full load
Reduced manufacturing cost
Reduced maintenance down time, easier to clean

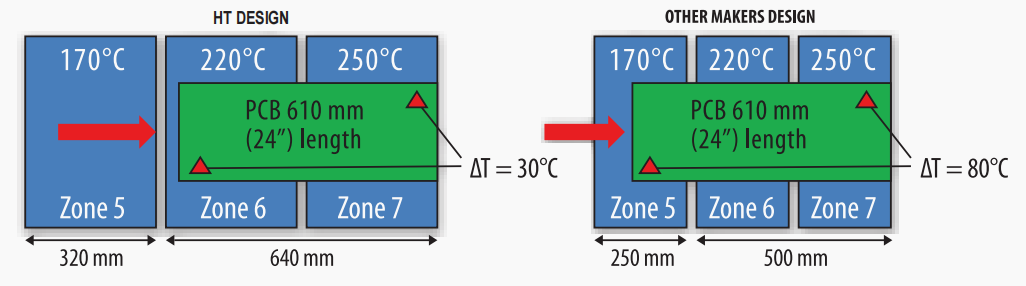

LONGER EFFECTIVE HEATING ZONES
Smaller △T on PCB minimizes PCB warp
STABLE &REPEATABLE PROFILES: “WHAT YOU SET IS WHAT YOU GET”

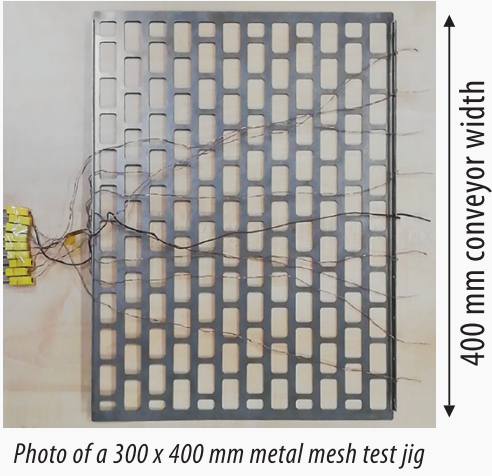

8 thermal couples attached evenly across the test jig front edge to record the heat transferred to the entire 400 mm conveyor width (Refer to the photo beside)

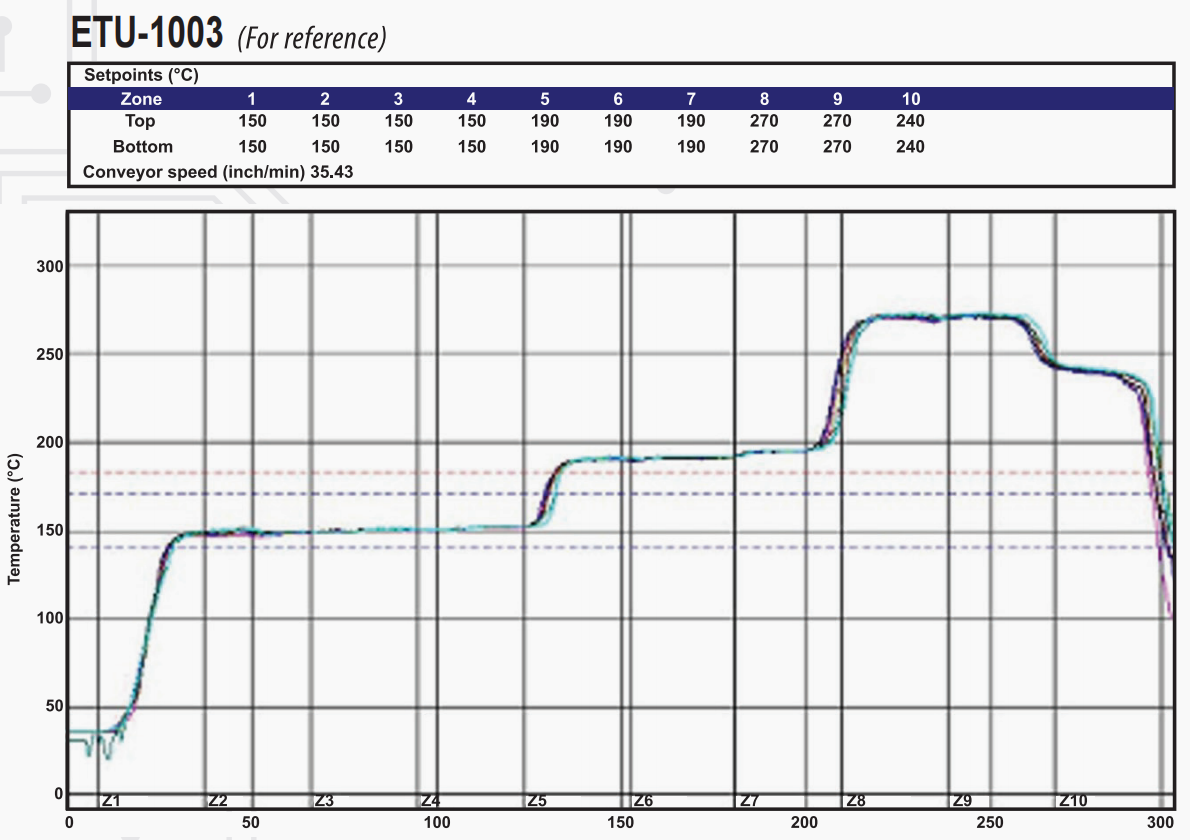

Temperature difference among all 8 thermal couples actual reading and the set temperature are<1°℃ (Refer to the profle below)
Fully demonstrate excellent hot air transfer efficiency with minimum heat loss
Huge saving on electricity bill on reflow oven and air-conditioning in the production floor with cooler oven external body temperature
CONVEYOR SYSTEM
RELIABLE CONVEYOR

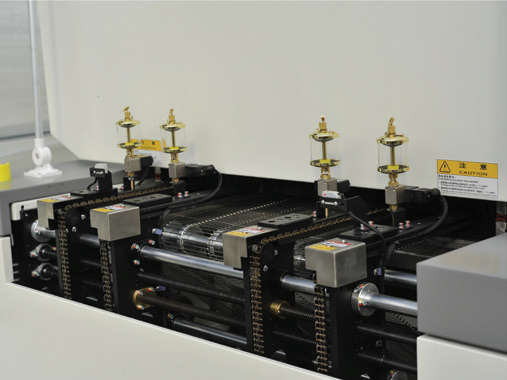

Programmable automatic oil lubrication
Multiple support points maintain parallelism
Heat treated conveyor rails ensure long durability
Double buckle chain avoids oil contamination on PCB

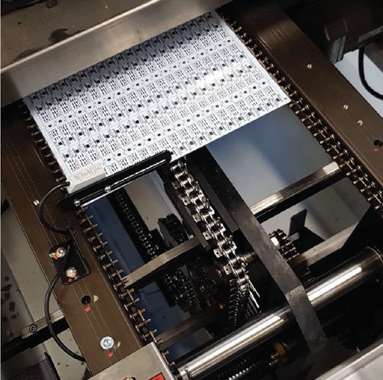

Center board support chain (Optional) supports large boards and prevents warpage
PRODUCTIVE & FLEXIBLE DUAL LANE CONFIGURE RATION [ETU-D/DN MODELS]
Increased throughput
Independent speed control at both lanes (Optional) provides flexibility to run different products

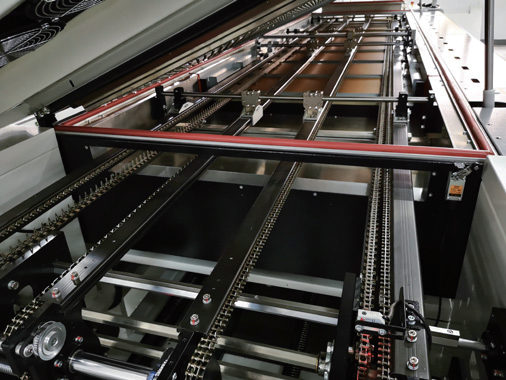

Center board support chain (Optional) can be installed at both lanes with auto position adjustment
Max. conveyor width can choose to have 295 mm x 2 lanes without extra charges (Factory fitted option)
AUTOMATION & TRACEABILITY
Hands-free Automation
Automatic recipe switching with barcode scanner(Optional)
Automatic conveyor width adjustment (According to recipe/By numerical data input (Optional)
Automatic thermal profiling with KIC ProBot (0ptional)
Smart Factory
Automatic, quick and easy model changeover without human intervention (Optional)
Future-proof system allows boards to enter only when oven is ready (Optional)
Proactive data analysis by KIC ProBot (Optional) allows infinite data to be processed automatically and accessed in a more structured and understandable form
MES Ready With Traceability
Production process information is recorded,providing full traceability (Optional)
System is ready for MES integration and customization (Optional)
Industry 4.0 Ready
The innovative concept of Etu series reflow ovens supports Industry 4.0
Automatic Thermal Profiling: KIC Probot (Optional)
Eliminate expensive periodic manual profiling
1 PCB 1 profile
Reduce production downtime
A complete thermal profile management with full traceability (Industry 4.0 ready)
Optional Features
O-Option available; X-Option not available
